Geometry and Mensuration: Test 21

This is an assessment test.
These tests focus on geometry and mensuration and are meant to indicate your preparation level for the subject.
Kindly take the tests in this series with a pre-defined schedule.

Geometry and Mensuration: Test 21

Please wait while the activity loads.
If this activity does not load, try refreshing your browser. Also, this page requires javascript. Please visit using a browser with javascript enabled.

If loading fails, click here to try again

Congratulations - you have completed Geometry and Mensuration: Test 21.You scored %%SCORE%% out of %%TOTAL%%.You correct answer percentage: %%PERCENTAGE%% .Your performance has been rated as %%RATING%%

Your answers are highlighted below.

Question 1

In the following figure, the radii of the circles with centre at 'u and 'v' is of one unit and they touch each other. These circles also touch the circle with centre at 's'. These three circles touch internally the outer circle of radius 2 units. Find the radius of the circle whose centre is 's'.

A	5
B	3/2
C	2/3
D	None of these

Question 1 Explanation:

$ \displaystyle \begin{array}{l}{{\left( su \right)}^{2}}={{\left( sw \right)}^{2}}+{{\left( su \right)}^{2}}\\\Rightarrow {{\left( m+1 \right)}^{2}}={{\left( rw-rs \right)}^{2}}+1\\\Rightarrow {{\left( m+1 \right)}^{2}}={{\left( 2-m \right)}^{2}}+1\\\Rightarrow {{m}^{2}}+1+2m=4+{{m}^{2}}-4m+1\\\Rightarrow 6m=4\\\Rightarrow m=\frac{2}{3}\end{array}$

Question 2

In the figure given below, O is the centre of the circle. If OBC = 37o, the BAC is equal to

A	74^o
B	106^o
C	53^o
D	37^o

Question 2 Explanation:

∠OBC = 37^o = ∠OCB
Thus, ∠BOC = 180 -74 = 106^o
∠BAC= 106/2 = 53⁰
Correct option is (c)

Question 3

Two non-intersecting circles, one lying inside another, are of diameters a and b. The distance between their circumferences is c. The distance between their centres is

A	a–b–c
B	a+b–c
C	½ (a–b–c)
D	½ (a–b)–c

Question 3 Explanation:

The distance between their centers is
= (radius of bigger circle- distance between their circumference – radius of smaller circle)
=½ a–c–½b
=½ a–½b–c
=½ (a–b)–c
Correct option is (d)

Question 4

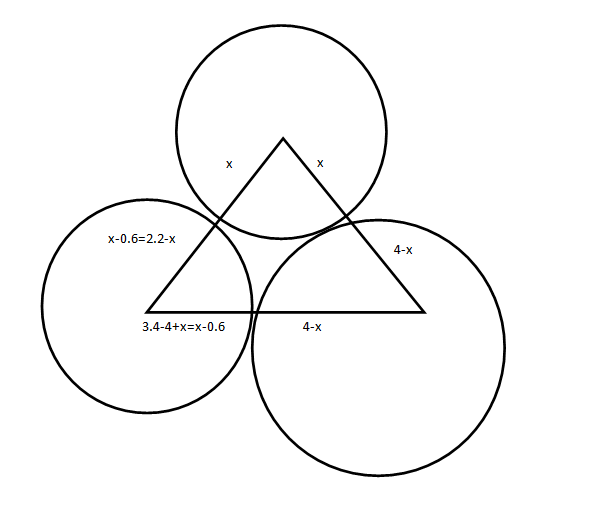

The sides of a triangle measure 4 cm, 3.4 cm and 2.2 cm. Three circles are drawn with centers at A, B and C in such a way that each circle touches the other two. Then, the diameters of these circles would measure (in cm)

A	1.11, 1.7, 5.0
B	1.6, 2.8, 5.2
C	1.5, 2.9, 5.2,
D	1.6, 3.0, 5.0

Question 4 Explanation:

$ \displaystyle \begin{array}{l}Thus\text{ }we\text{ }can\text{ }see\text{ }that\text{ }x-0.6=2.2-x.\\=>\text{ }x=1.4\\One\text{ }of\text{ }the\text{ }diameters\text{ }is~2\times 1.4=\text{ }2.8,\\Similarly\text{ }the\text{ }others\text{ }are\text{ }1.6\text{ }and\text{ }5.2\\The\text{ }correct\text{ }option\text{ }is\text{ }\left( b \right)\end{array}$

Question 5

A rhombus OABC is drawn inside a circle whose center is at O in such a way that the vertices A, B and C of the rhombus are on the circle. If the area of the rhombus is 32√3 m², then the radius of the circle is
